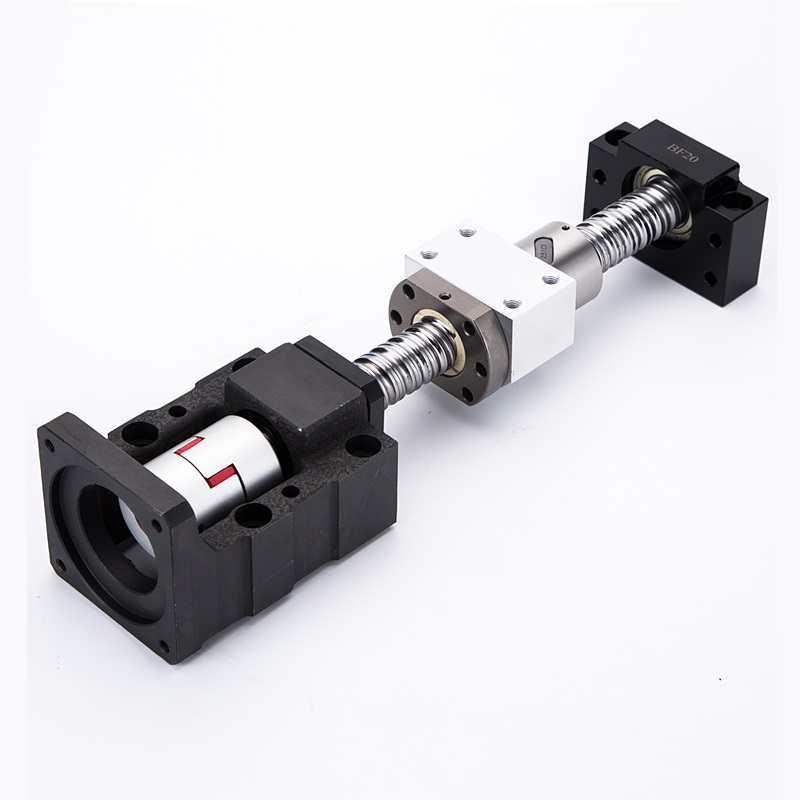

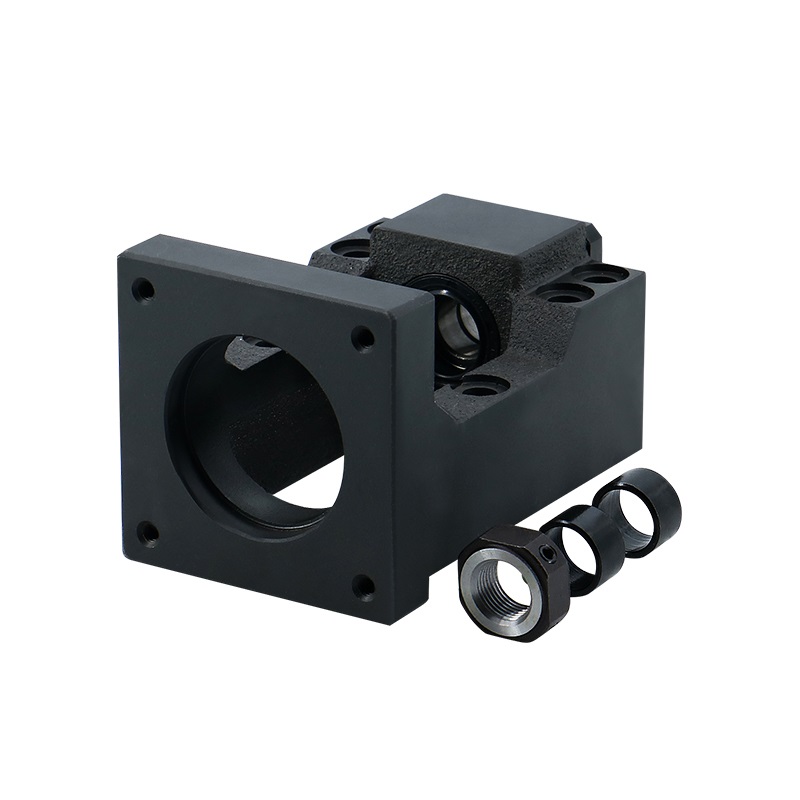

Ball Screw End Support With Motor Mount Bracket. Cast Iron, Cast Aluminum.
| Item Name: | Ball Screw End Support With Motor Mount Bracket |
| Material: | Steel, bearing |
| Measurement System: | Metric |
| PCs in Item: | 1 PC or 1 Set. See buying options |
| Manufacturer: | N/A, Made in China |
| Notes: |
| Mount Bracket | Ball Screw | Support End | Ball Screw Seat | Shaft Coupler | Ball Screw Lock Nut |
| HM10-Nema 23 | 12xx | BF10 | DSG12 | 25-30 | M10*1 |
| HM10-Servo 60 | |||||
| HM12-Nema 23 | 16xx | BF12 | DSG16 | 30-40 | M12*1 |
| HM12-Servo 60 | |||||
| HM15-Nema 23 | 20xx | BF15 | DSG20 | 30-40 | M15*1 |
| HM15-Servo 60 | |||||
| HM15-Servo 80 | |||||
| HM15-Nema 34 |
| Weight | 0.5 kg |
|---|---|
| Dimensions | 8 × 8 × 8 cm |
| Material | Cast Iron, Cast Aluminum |
| Bore-Motor | HM10-Nema 23, HM10-Servo 60, HM12-Nema 23, HM12-Servo 60, HM15-Nema 23, HM15-Servo 60, HM15-Nema 34, HM15-Servo 80, HM20-Nema 34, HM20-Servo 80 |
| Brand | DIYCNC Canada |
